Product Description

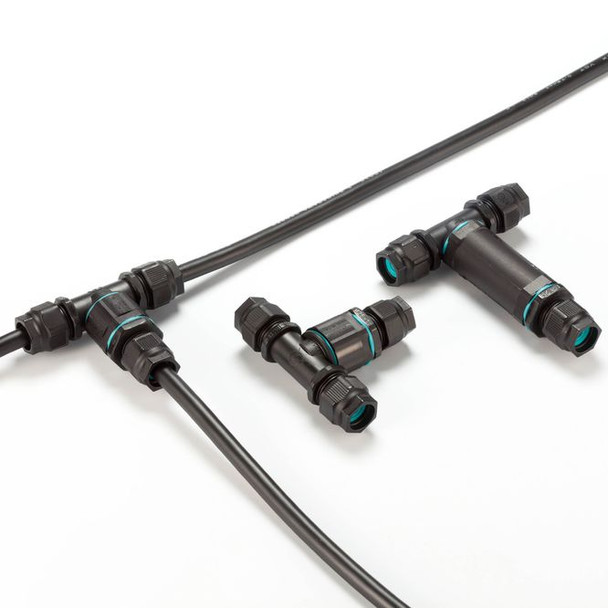

TeeTube 3 Way Cable Joiner - IP68
Waterproof TeeTube T Electrical Cable Joint (3 cable entries), 3 Pole, Screw - end barrier contact. Takes electrical cables 5mm to 13mm and a 4 mm max conducter size.
IP68 rated so therefore perfect for use underwater and in situtations where the cable joint may be submersed or areas prone to occasional flooding. Also suitable for use in areas of high condensation or humidity like for example, water tank turrets, basements and manhole chambers.
Often used to fit Float Switches to Pumps where pump is submersed in the water tank. Also used in ponds for lighting and connecting pumps.
Tough, robust construction with large cable range acceptance.
Technical Information
- Cable Entries: 2
- Number of Poles: 3
- Terminal Type: Screw - end barrier contact
- Body Material: PA66/TPE
- IP Rating: IP68
- Max Conductor Size: 4mm2
- Max Current: 32A
- Max Voltage: 450
- Temp Rating: -40°C to 125°C
- Minimum Cable Diameter: 5mm
- Maximum Cable Diameter: 13mm
- Temperature "T" Rating: T85
Included Components
- Cable Joiner
- Full Fixing Kit
- Fitting Instructions
