Product Description

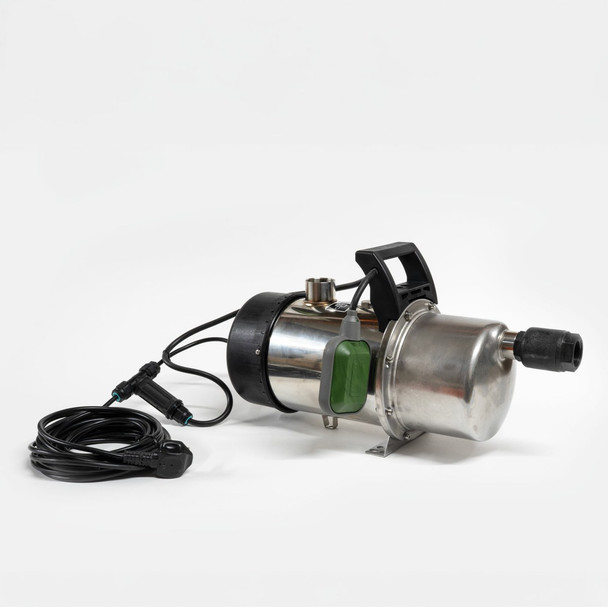

A professional quality automatic 4 bar pump with stainless steel motor body and 0.8hp motor. Fully waterproof (IP68), submersible and self-priming. Ideal for domestic and garden non-potable water supply. This powerful pump cis suitable for total submersion in water.
This automatic pump comes, as standard, with anti-blocking system and dry run protection with automatic restart. It also comes with a Non-return Valve (NRV) that you screw into the water inlet.

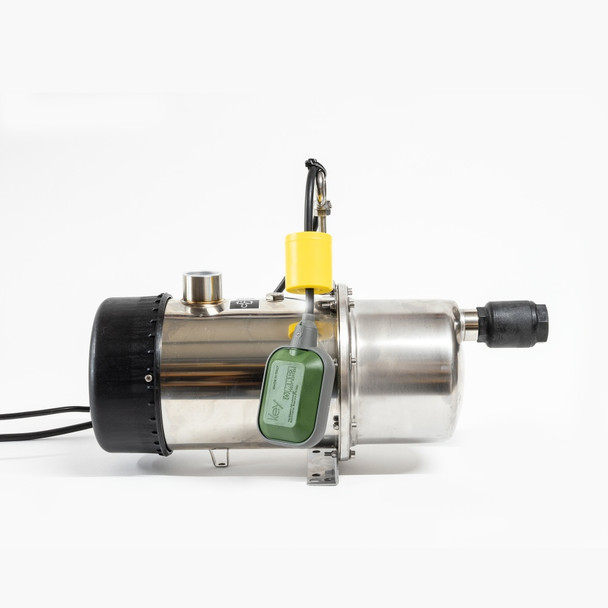

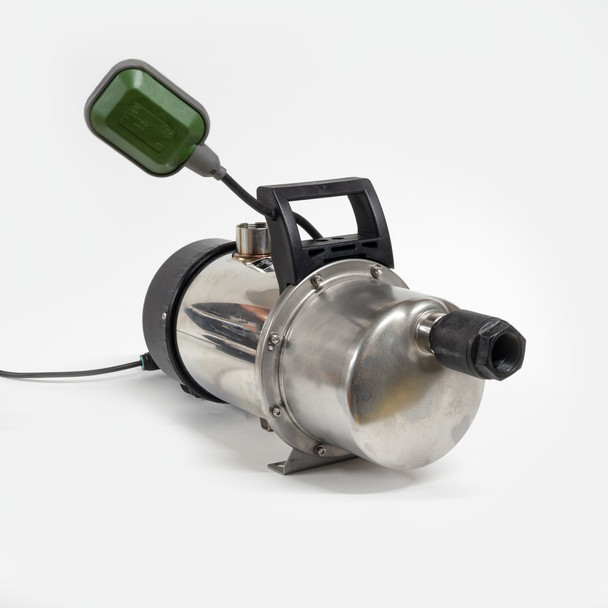

The Mac3 Key float switch can be used for filling or emptying the water tank. It comes with a 2m PVC cable and 220g counter weight as standard and is attached to the pump cable via an IP68 3 way cable joiner. The float cable is held in place on a 10cm Stainless Steel. Please contact us if you require a H07RN-F cable, or different cable or stainless steel bar length.
This pump enables you to use stored water and rain water to supply drip irrigation systems as well as conventional hose guns and sprinklers. A great way to be more water efficient by using rainwater to irrigate the plants in your garden or for washing your car. You can also use it for domestic water purposes.
With a high pressure of 4bar this pump provides a higher pressure than the average UK tap pressure, although actual performance does depend on the length and diameter of the watering hose that you use.
The XAJE80P intelligent pump responds to pressure in the delivery pipe. It turns itself on when there is a demand for water, then switches off again automatically once the demand has been met.
It is very quiet in use. The SteelPump has extremely low noise and vibration levels are due to the use of larger, smoother running motor components, a single piece rotor shaft, and a 360 degree water jacket surrounding the motor. Noise Absorption is maximised, making them far more pleasant to live with than a traditional air-cooled pump. This water cooled design and stainless steel stator housing remove heat from the motor faster than any other type of design. Unlike air and oil cooled pumps, which warm up quickly in hot rooms and sunny positions, increasing susceptibility to stress and fatigue, SteelPumps stay as cool as the water they are pumping.
This is a clean water pump which means that collected rainwater needs to be filtered before it enters the pump. This can either be done when collecting the water using a quality downpipe diverter that also filters the water, like the 3P Filter Collector Universal, before it enters your rainwater storage vessel.
Pump Warranty
This is a high quality professional pump that comes with a 2 year warranty when properly installed. SteelPumps are designed to be serviceable long into the future with common service components located behind an easy to remove electrical cover. The capacitor, pressure switch, flow sensor and control unit are all easily accessed.
Pump Repairs and Servicing
Disassembly of the entire pump is straightforward using basic tools, and ALL parts, including nuts and bolts, are available to order individually from the manufacturers website: wwww.steelpumps.co.uk. There are no corrodible mechanical parts within the pump, no potted electronics, no crimped wiring (everything unplugs). Service diagrams and information provided on request.
While other brands are ‘production engineered’ to be assembled fast and never taken apart, Steelpumps can be maintained for as long as spares are made. They are designed to last.
Optional Extras
Compression Adaptor for Outlet
Select option above to add a reducer and compression adaptor to connect 1"hose to the 1.25" pump outlet (hose not included).
Technical Information
XAJE80P SteelPump
- Pumped liquid: Clean cold water without abrasives or solids.
- Motor: 0.8hp.
- Max bar: 4
- Inlet Size: 1"
- Outlet Size: 1.25"

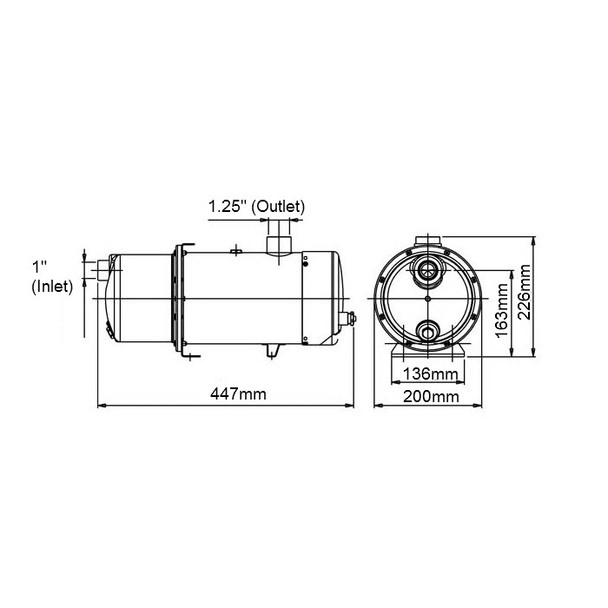

- Dimensions: 447mm long x 200mm wide x 226mm high
- Weight: 11.5Kg
- Waterproof protection rating: IP68
- Pump Type: Water cooled, single stage impeller/diffuser with venturi.
- Motor Body: Stainless 304.
- Rotor Shaft: Stainless 420.
- Supporting Flanges: Polypropylene.
- Impeller, Diffuser and Venturi: Noryl.
- Electrical cover: Polypropylene.
- Liquid temperature range: +2°C to +37°C.
- Air temperature: max +45°C.
- Maximum depth: 5m.
- Calibrating pressure rate switch: 1.5 bar.
- Cable Length: 10m with plug.
Mac3 Key Float Switch
- Cable Material: PVC 3X1
- Cable Length: 2m
- Model Type: K04-10
- Approval: ENEC / EC
- Microswitch Features: 10(4)A 250V
- Operating Temperature: 0oC to 50oC
- Protection Rating: IP68
- Switch Angles: +45o/-45o
- Float Dimensions; 81 x 131 x 41.5mm
- Float Weight: 154g
- Float Volume: 244cm3
- Max Depth: 1 bar
- Float Housing Material: Non-toxic polypropylene (PP), Colouring: Non-toxic, Blue and Yellow
Documents

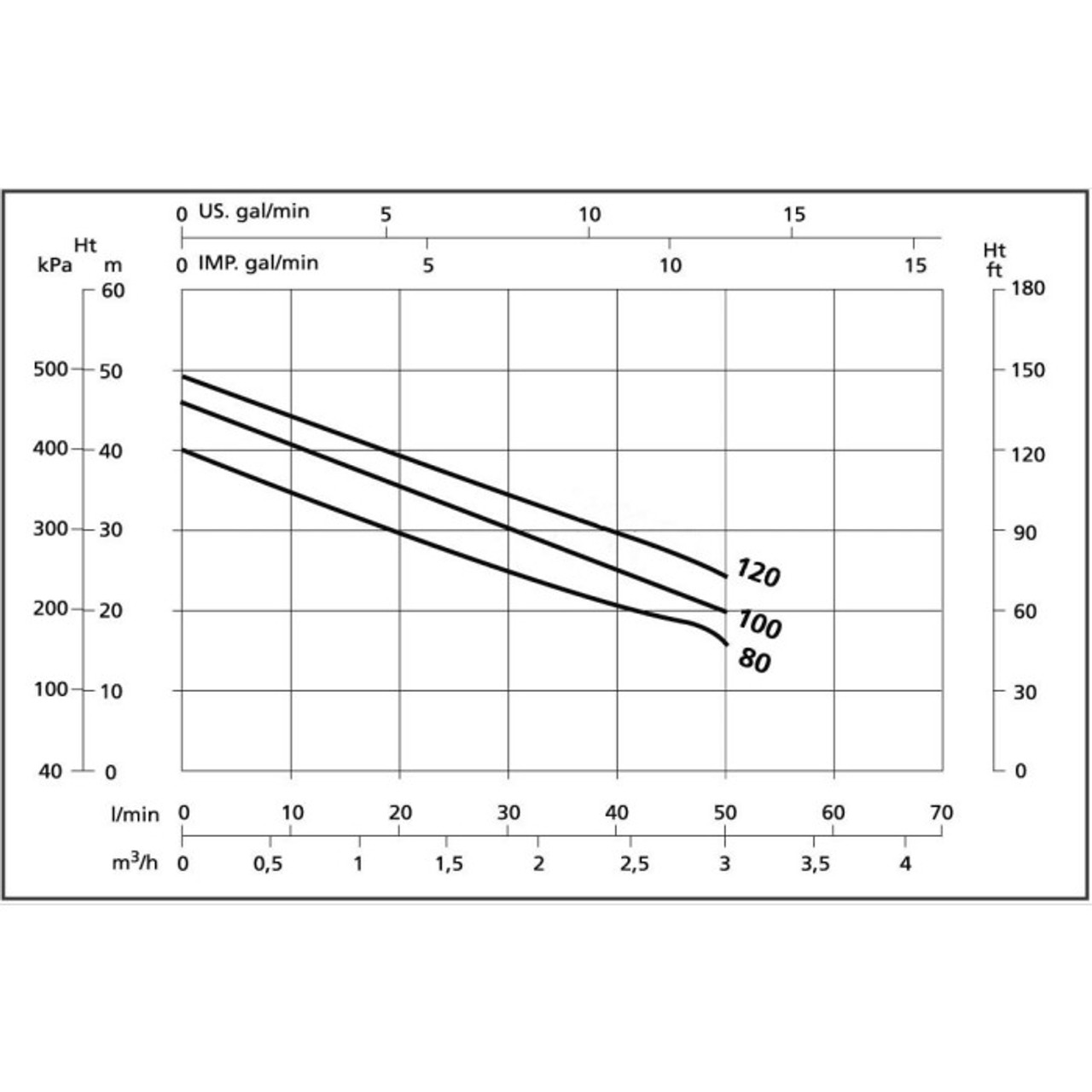

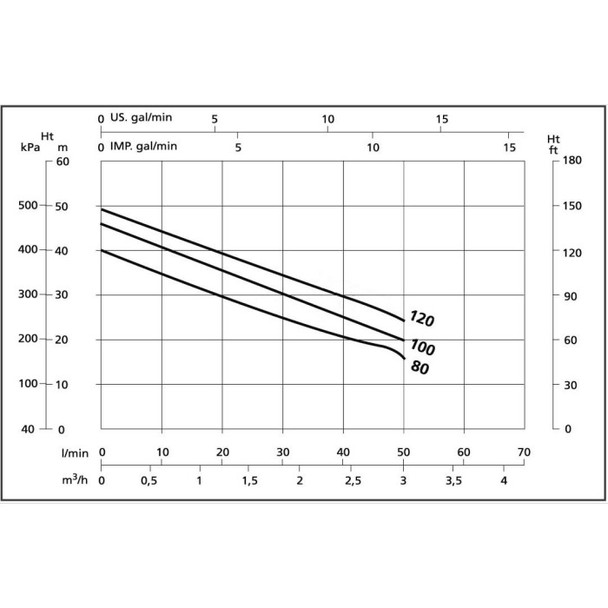

- SteelPumps Datasheet including flow curves (opens in a new window)
- SteelPumps Additional Guide (opens in a new window)
- SteelPumps Commissioning Checklist (opens in a new window)

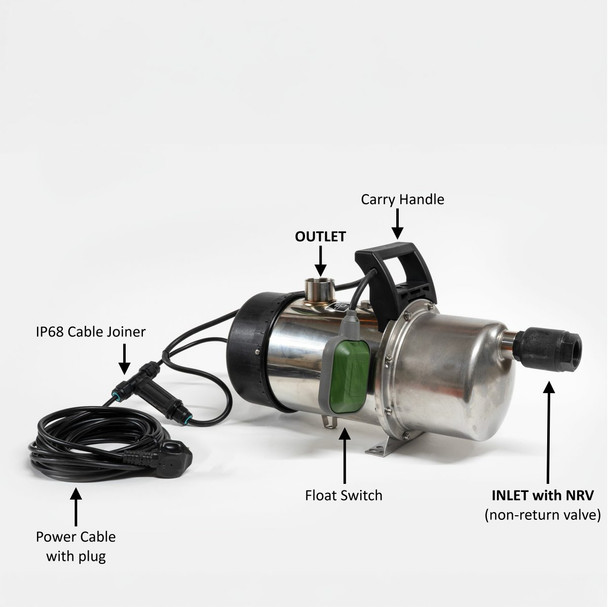

Included Components
- SteelPump
- Non Return Valve (NRV)
- 10m Cable with plug
- Mac3 Key 2m Float Switch
- 220g Float Switch Weight
- 10cm Stainless Steel Rod, Nuts and Eyelet
- 3 Way Cable Joiner (IP68)
- Full Installation Instructions
Other Versions
Please contact us if you require different variations of this pump, pump type, cable length, cable type. Our in-house technical team can build systems to most specifications.
FAQs
What is the difference between the "P", "B" and "PRO" versions of SteelPumps?
The "P", "B" and "PRO" suffixes of the SteelPump range of intelligent pumps refers to the build properties of the pumps. Essentially;
- P = Designed primarily for portable and garden use.
- B = Designed for domestic and light commercial use.
- PRO = Extensive use of stainless steel and brass within the pump build and therefore designed for commerical and industrial use.
