Product Description

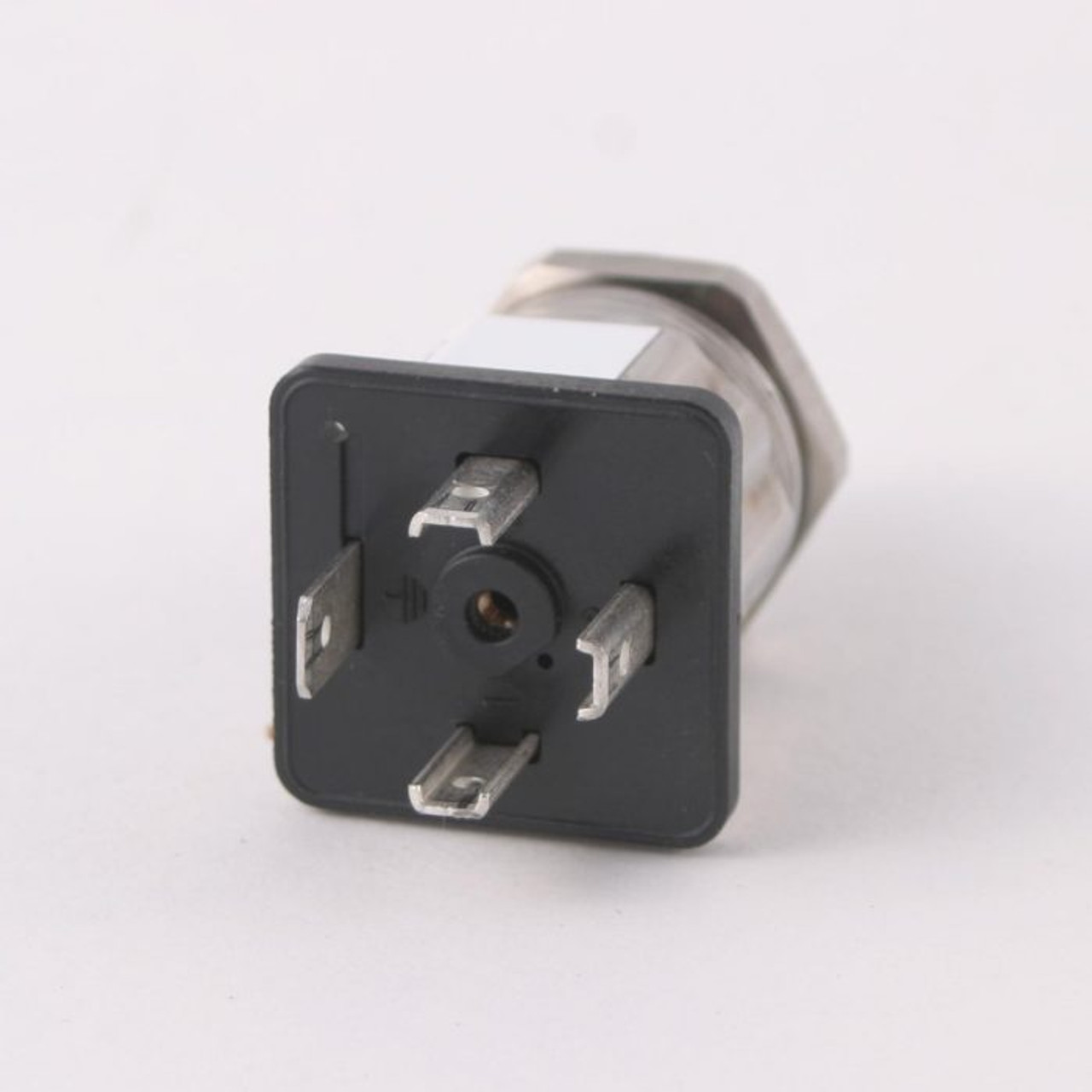

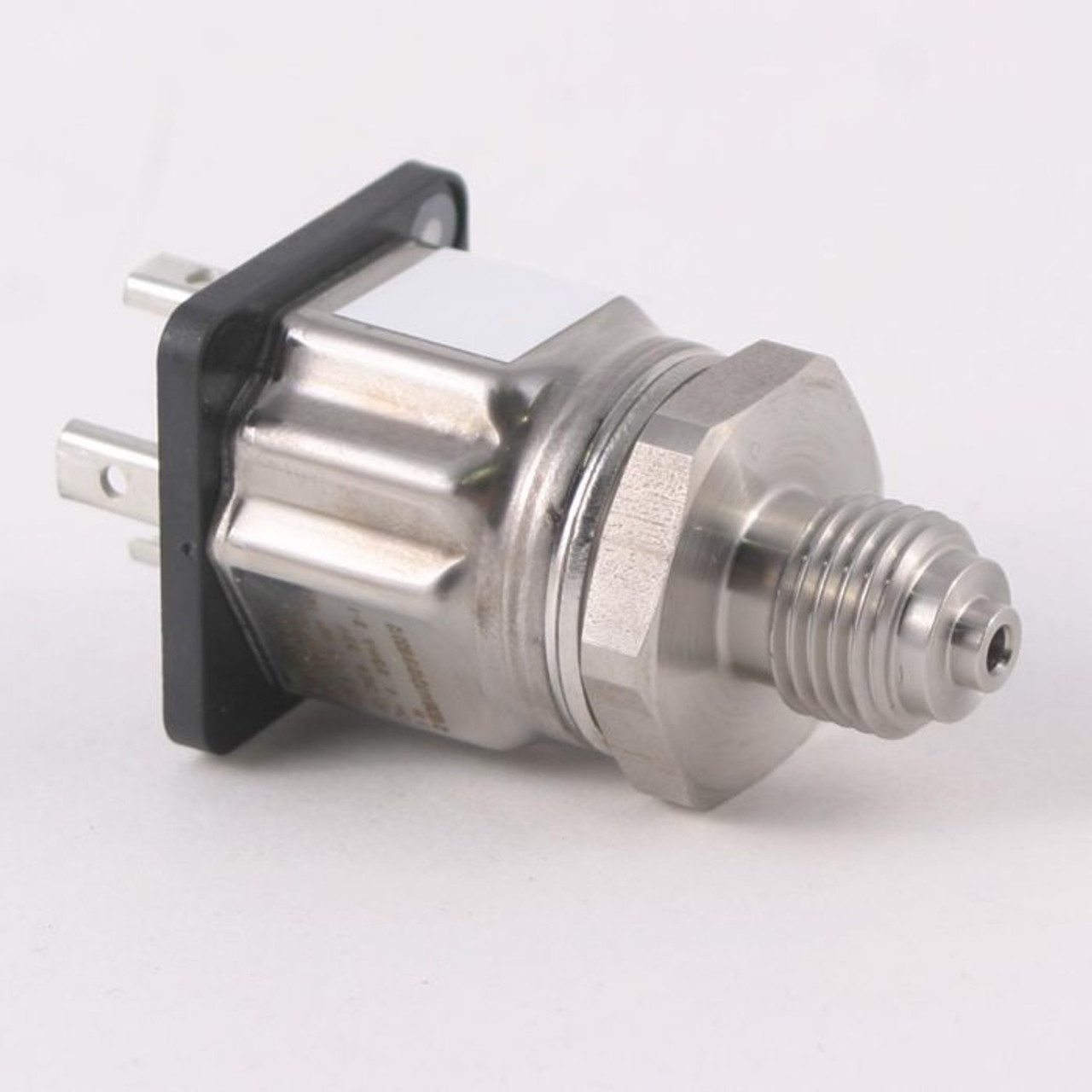

Midas S05 Pressure Sensor
Replacement Line Pressure Sensor to suit the following control systems:
- Spinflow SP50, SP100 Rainwater Controllers
- Polypipe ACU Rainwater Controllers
- Hydro International Stormbank Pro
- 3P Rainforce 300T, 500/600TH/TS, Rainwater Controllers
- 3P PF320, PF330, PF340 Pump Set Controllers
- 3P BPM Booster Pump Sets
Technical Details
- 0 to 10bar
- 4-20mA - 2 wire
- Hirschmann style square din plug 3 pin
- 1/4" BSP process connection
- Stainless Steel Housing
- Stainless Steel Membrane with synthetic oil pressure transfer medium
- Ingress Protection: Process side IP68, Plug IP55
