Product Description

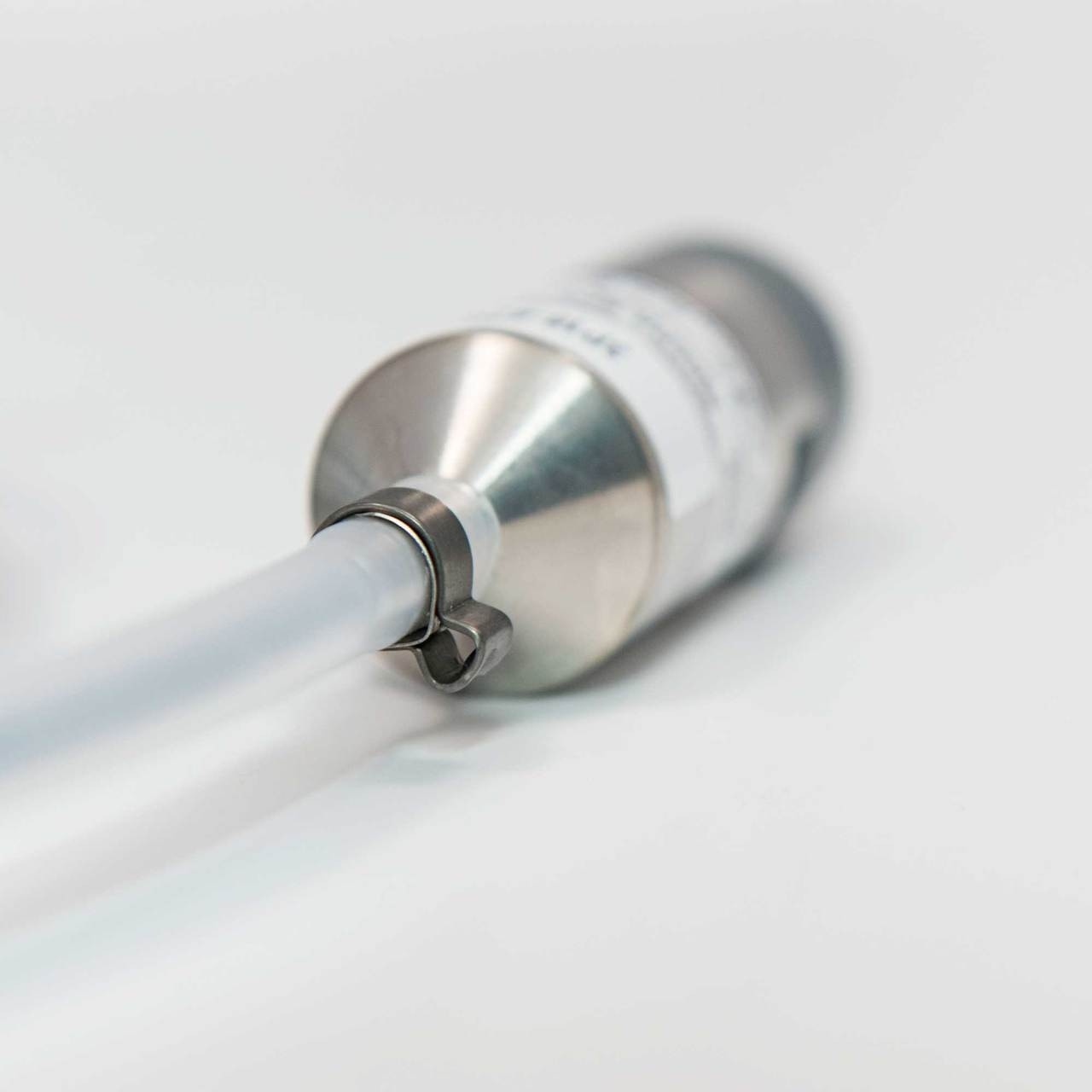

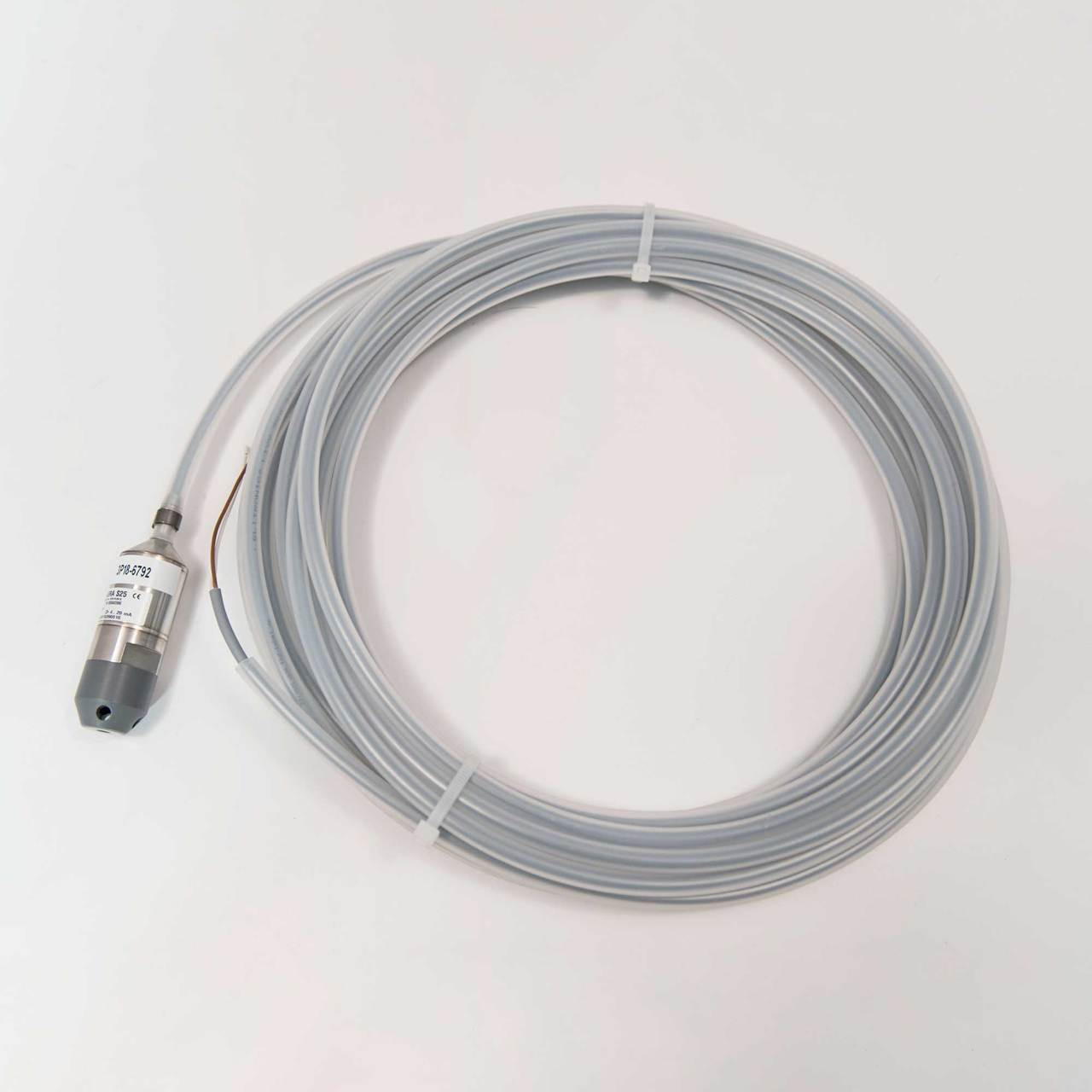

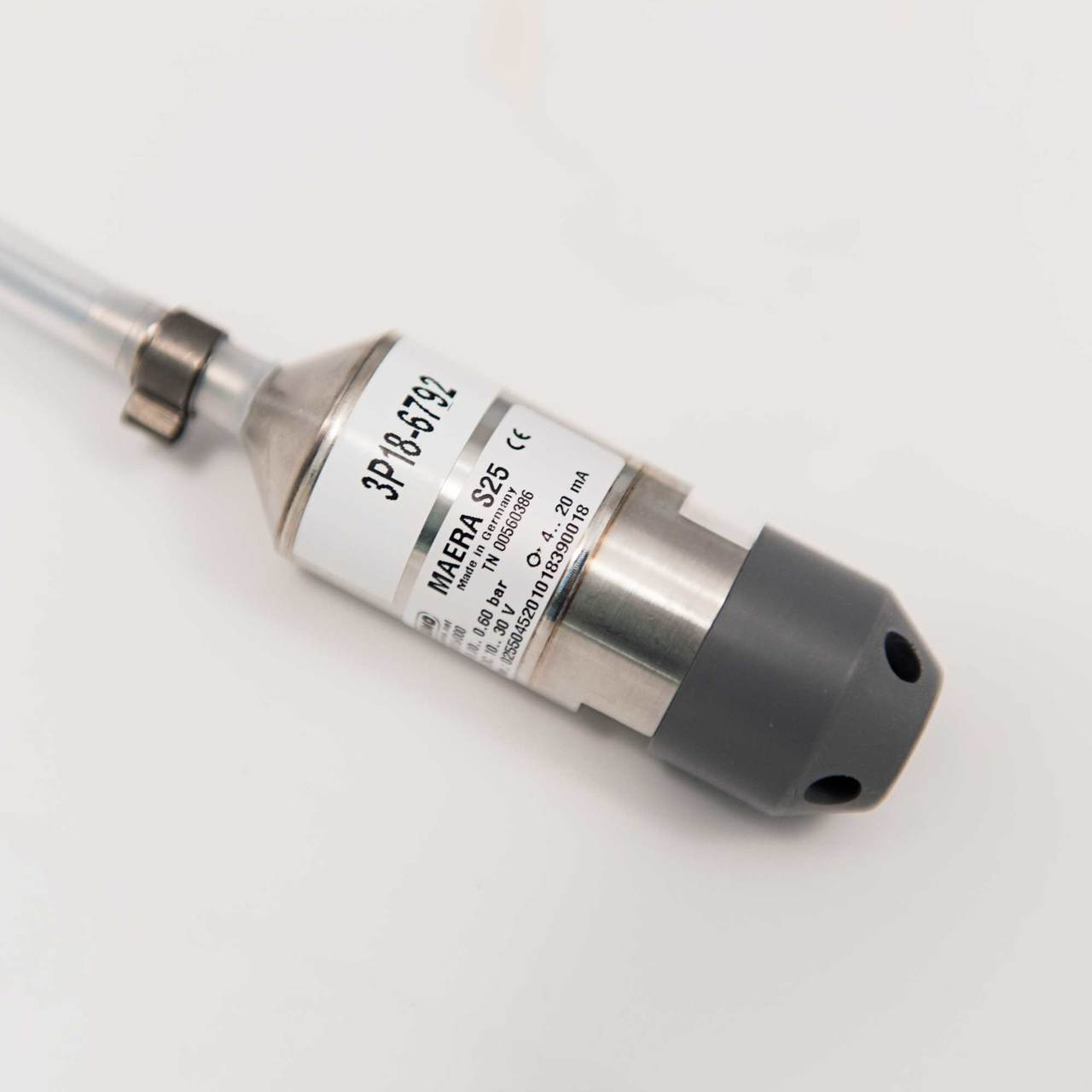

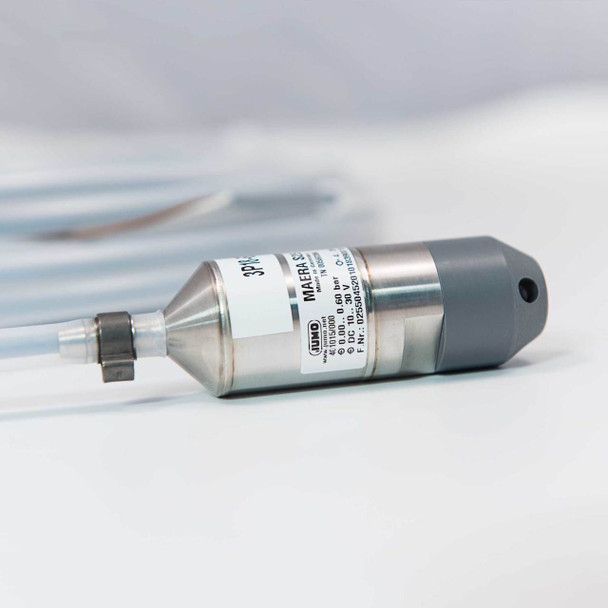

Submersible Pressure Transmitter 0.6bar with 10m of Vented Cable
Submersible pressure sensors which are used to measure liquid level. The vented cable is used to cancel out the effects of atmospheric pressure by allowing air pressure to reach the reverse side of the pressure sensor.
Technical Details
Pressure Transmiter
Type: Peizoresistie sensor
Housing material: Stainless Steel 304
Membrane: Stainless steel 316L
Transfer medium: Synthetic oil
Mass: 90g without cable
Nose cone: Rigid PVC
Diameter: 27mm
Process connecton: 1/2" BSP
Ingress protecton: IP68 to 20m - EN60529
Standards: DIN16086 and EN 60770
Electromagnetic Compatibility
Interference emission: Class B - EN61326-1
Interference immunity: EN61326-2-3
Performance
Measuring range: 0 to 0.6bar
Response tme: <= 10ms
Linearity: 0.3% fsr
Accuracy at +20c: 0.5% fsr
Overall accuracy 0c to +50c: 1% fsr
Long term stability: 0.3% fsr per year
Standards: EN61298-1
Durability
Load cycles 0 to 100%: >10 million
Overload capacity: 1.8bar
Burst pressure: 2.4bar
Temperature range: 0 to +50c
Storage temperature: -20c to +80c
Cable
Type: Vented (External Sleeve)
Material: PVC
Vent tube material: PE
External diameter: 8mm
Bending radius: 120mm
Temperature range: -5c to +80c
Yield stress: 10MPa
Electrical
Installaton classifcation: SELV
Type: 4-20mA 2 wire
Supply voltage: 10-30vdc
Colours: 0v Brown, +v White
Reverse voltage protecton: Yes
Max Current consumpton: 25mA
