Product Description
24v Water Tank Level Controller For Fast Mains Water Tank Filling And Top-Up
For use with automatic pumps to top-up Rainwater Harvesting Tanks with mains water.
The 3P TCS5JBL Top-up Switch is intended to maintain the level of water in a water tank by topping up the tank when the level becomes low, with a measured amount of mains water. Ideal for irrigation applications.
Water level in the tank is sensed via a float switch, mains water is added via a high flow solenoid valve feeding back to the rainwater tank. A float switch, solenoid valve and Tundish can be purchased separately. Please contact us for optoins.
The solenoid will be activated when the float switch hangs down at approximately 45 or more, the top-up cycle will then continue until the float switch reaches an upward angle of approximately 45 degrees, ensuring a measured quantity of water is introduced to the tank.
Single phase versions of this top up controller are also available.
Documents
TCS5JB Mains Water Top-up Controller Brochure (pdf)
Included Components

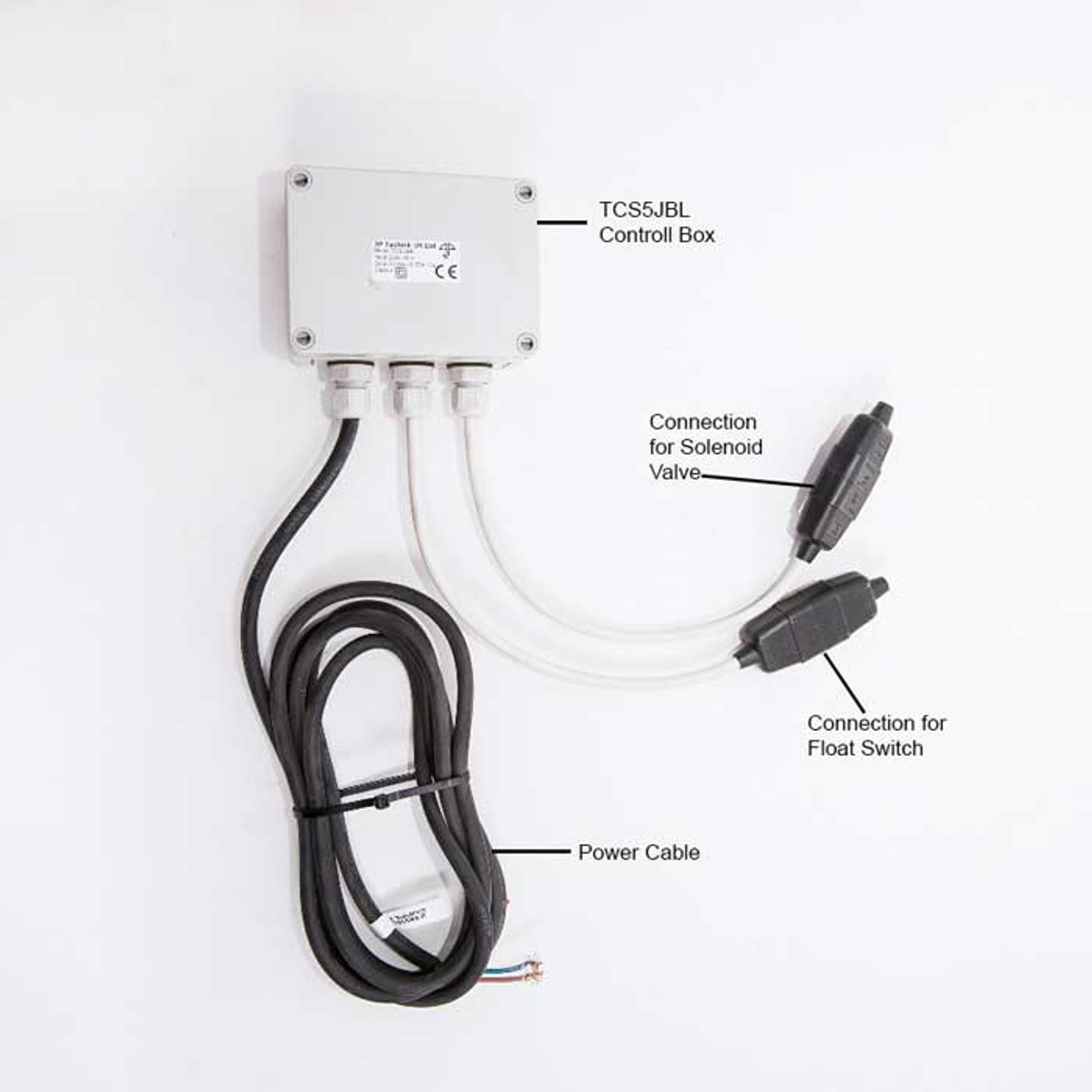

The TCS5JBL Controller only with Installation & Operation Manual (including wiring diagram).

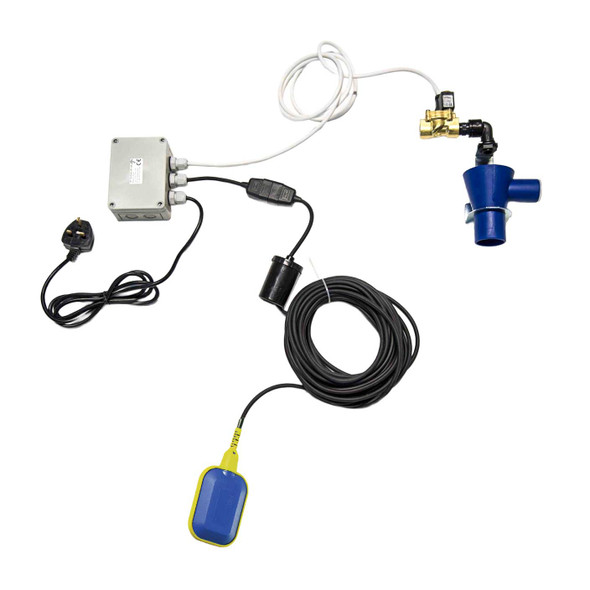

Other parts required:
- Solenoid Valve
- Tundish with Stainless Steel Wall Bracket
- Float Switch with Counterweight
- Screws or fixings to mount panel and Tundish Bracket
Please contact us for information about your application for advice.
