Product Description
The DAB Leader Divertron 1000X is a high quality intelligent 0.88HP multi-stage DAB submersible pump with 3 impellers and electronic flow control (i.e. it will automatically pump on demand).
There is a new and improved 2nd generation of this Divertron pump now available. Please see the DAB Divertron 650 X.
Ideal for rain water storage tank, well or bore hole when located above any bottom sludge or debris (lifting cable not supplied). Huge power (1Hp) and built in dry-run protection.
Also known as the Leader Divertron 1000 x pump, (and Flipper pumps in Europe) the electronic flow control of the DAB Divertron 1000 pump responds to the pressure in the outlet pipe. As the user draws water (by opening a tap or similar) the pump automatically starts. Turn the demand for water off and the pump cuts out automatically. It has a 1" threaded inlet and outlet.
Designed to last, the Divertron 1000X is manufactured with anti-corrosive and rust-proof materials and has a wear resistant shaft. The motor has thermal overload protection.
This pump is designed for pumping clean water only. The impeller will be damaged if abrasives and solids are run through it. It is water proof and designed to run in submerged situations either inside or outside. These pumps need to be kept fully submerged while running, if there is a chance your tank will run low and partially or fully expose the pump this is not the pump for you. Either install a mains water top up controller, or choose from our range of SteelPumps (which are designed to run perfectly in or out of water). The X-AJE120P would be a comparible pump.
Supplied with a 15 metre power cable with 2-pin (Schuko) plug and integral non return valve. This pump is typically hard wired to a control panel for mains water top up systems, and to a single fused spur outlet circuit.
A pressure vessel (not included) within the pump system will help prevent false re-starts due to small leaks and help prolong the lifespan of the pump.
Optional Extras

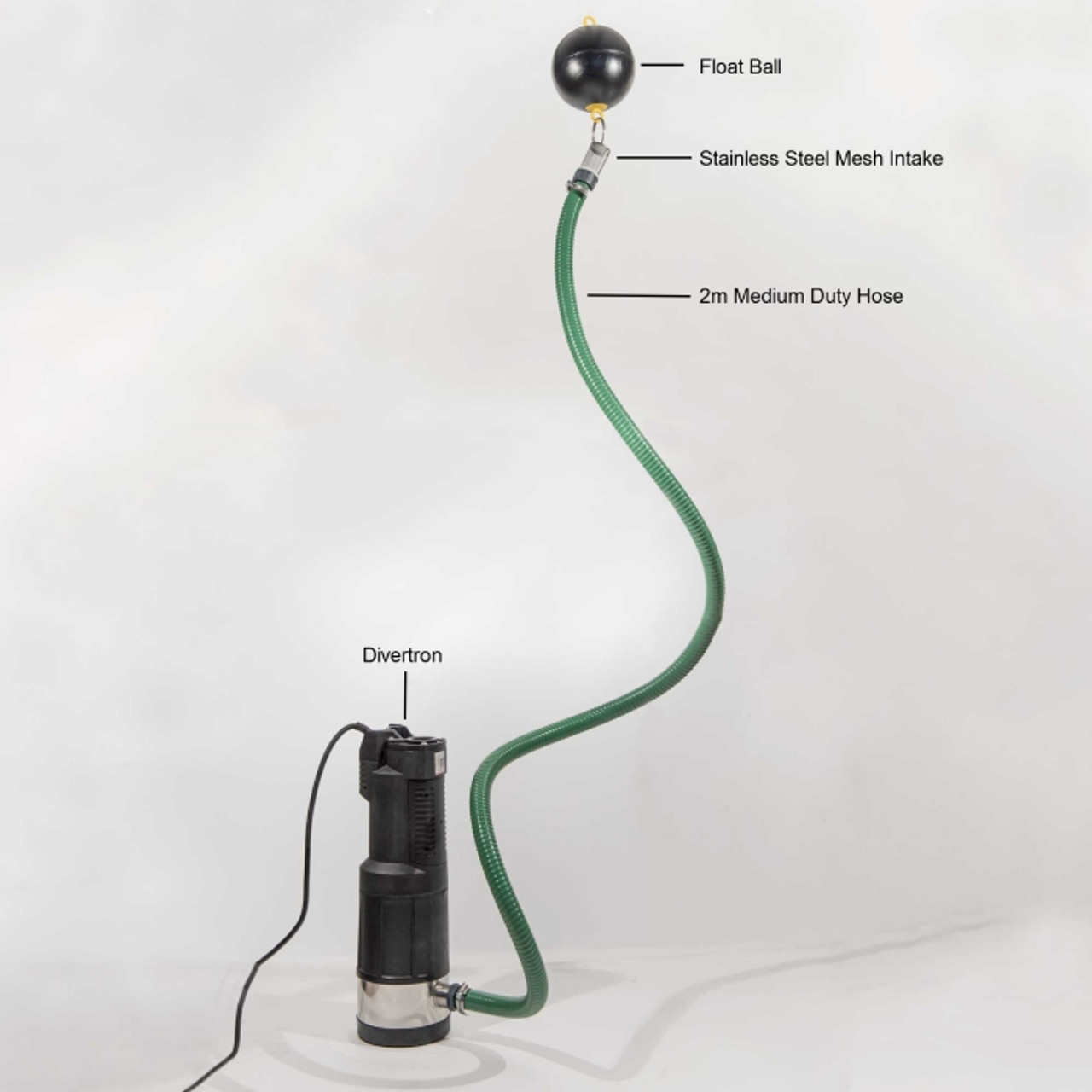

Floating Intake
In your rain water collection tank or water holding tank, debris will either float to the surface of the water (where it is lighter than water - oil, pollen etc) or sink to the bottom of the tank.
A Floating Intake Filter allows the water to be collected at a minimum distance of approximately 6" (150mm) below the surface of the water - where the cleanest water is. This prevents any floating debris to enter the pump suction hose and unlike other pump suction filters it does not fall to the bottom of the tank (where much of the debris lies).
To add a simple floating intake to your order please see our Floating Intake page. Alternatively a simple 1" mesh strainer can be added to your order if a floating intake is not possible.
Pressure Vessel
It is recommended to install a small pressure vessel (expansion tank) with this pump. A pressure vessel provides a reserve of pressurised water to your system and therefore limit the number of starts of and wear on the pump when it is used for quick short periods of time. It therefore prolongs the life of your pump. For example, if someone were to wash their hands, water would initially come from that stored inside the pressure tank, if the tap was then closed, the pressure vessel would automatically refill from the mains pressure without the need for the pump. The pump would only need to kick in once the pressurised water from the tank has been used ie. if you were to fill a bath or use the shower.
Pressure vessels also protect the pump from Water Hammer by absorbing any shock to the system for example if a tap is closed too quickly.
Connecting to pipes and hoses
To connect to a garden hose we recommend purchasing a 1" multi-hose reducer. If however you intend to connect hard blue or black 32mm MDPE pipe to the pump, you will need a 1" compression adapter (please ensure you select the correct size on the compression adapter page).

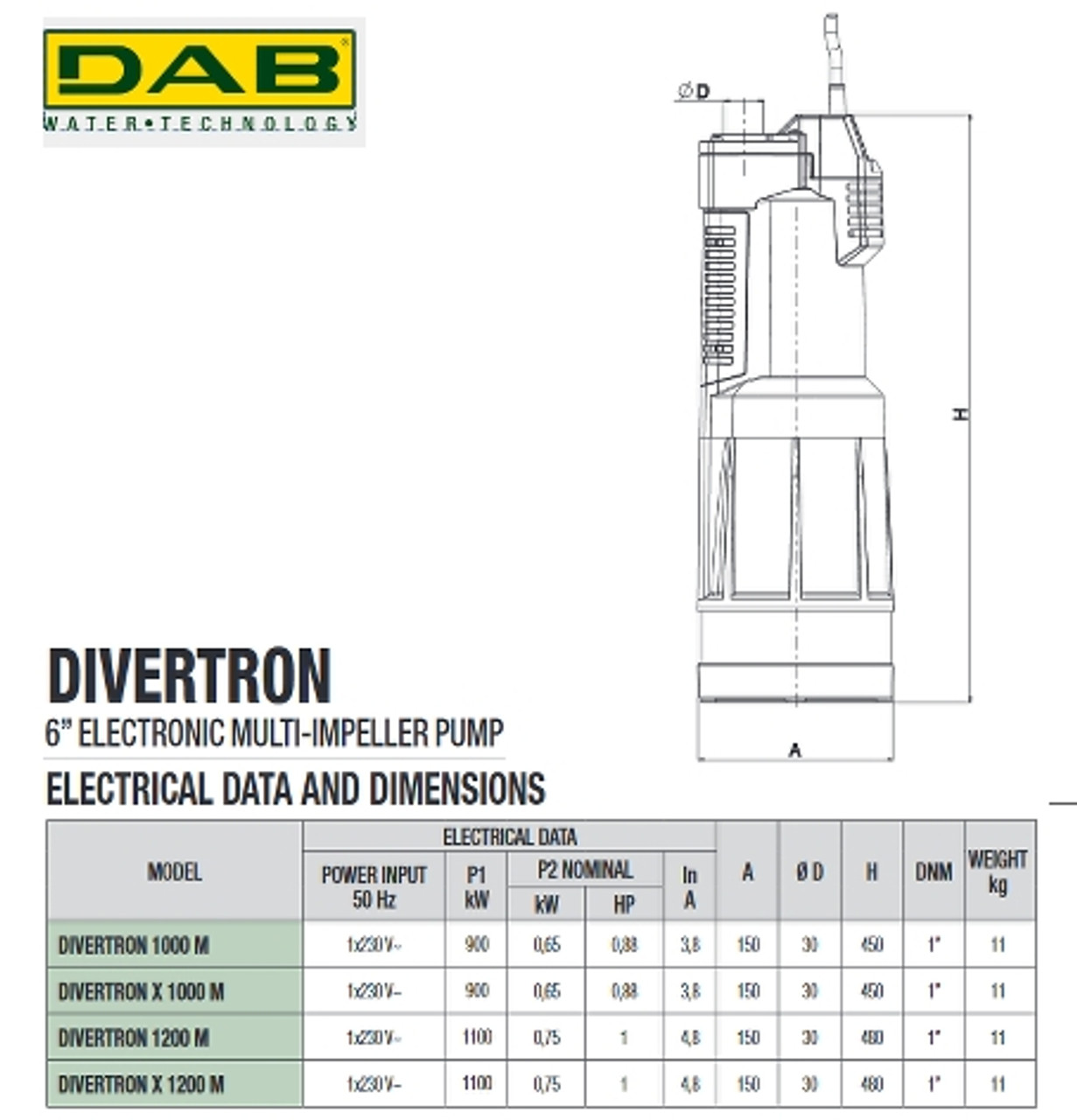

Technical Information
- Pumped liquid: Clean cold water without abrasives or solids.
- Motor: 0.88hp.
- Max bar: 3.6
- Max flow: 90l/min.
- Max Head: 36m
- Inlet Size: 1"
- Outlet Size: 1"
- Dimensions: 150mm deep x 150mm wide x 480mm high
- Weight: 11Kg
- Waterproof protection rating: IP68
- Pump Type: Water cooled, multi-impeller submersible pump.
- Motor Body: Technopolymer, Motor Case: Aluminium
- Rotor Shaft: Stainless 416.
- Impeller: Technopolymer / Stainless 303
- Diffuser: Technopolymer.
- Electrical cover: Technopolymer.
- Liquid temperature range: +0°C to +35°C
- Maximum depth: 12m (39ft).
- Cable Length: 15m with 2-pin (Schuko) plug.
- CE Mark
Please note: All Divertrons are fitted with a 2-pin (Schuko) plug. We strongly recommend that all submersible pumps are installed on a 10A single fused spur and should be installed by a qualified electrician. If you need an automatic pump with a 3-pin plug, please look at the SteelPumps range.
Documentation
- Quick Installation Guide (1.23MB pdf)
- DAB Divertron Datasheet (276KB pdf)
Included Components
- DAB Divertron Submersible Pump
- 15 metre power cable with 2-pin (Schuko) plug
- Built-in Non Return Valve (NRV) / Check Valve
- Owner's manual and Quick Installation Guide
Other Uses
This pump can also be installed:
- inside a large water tank and used with a float switch (PowerDiver).
