Product Description

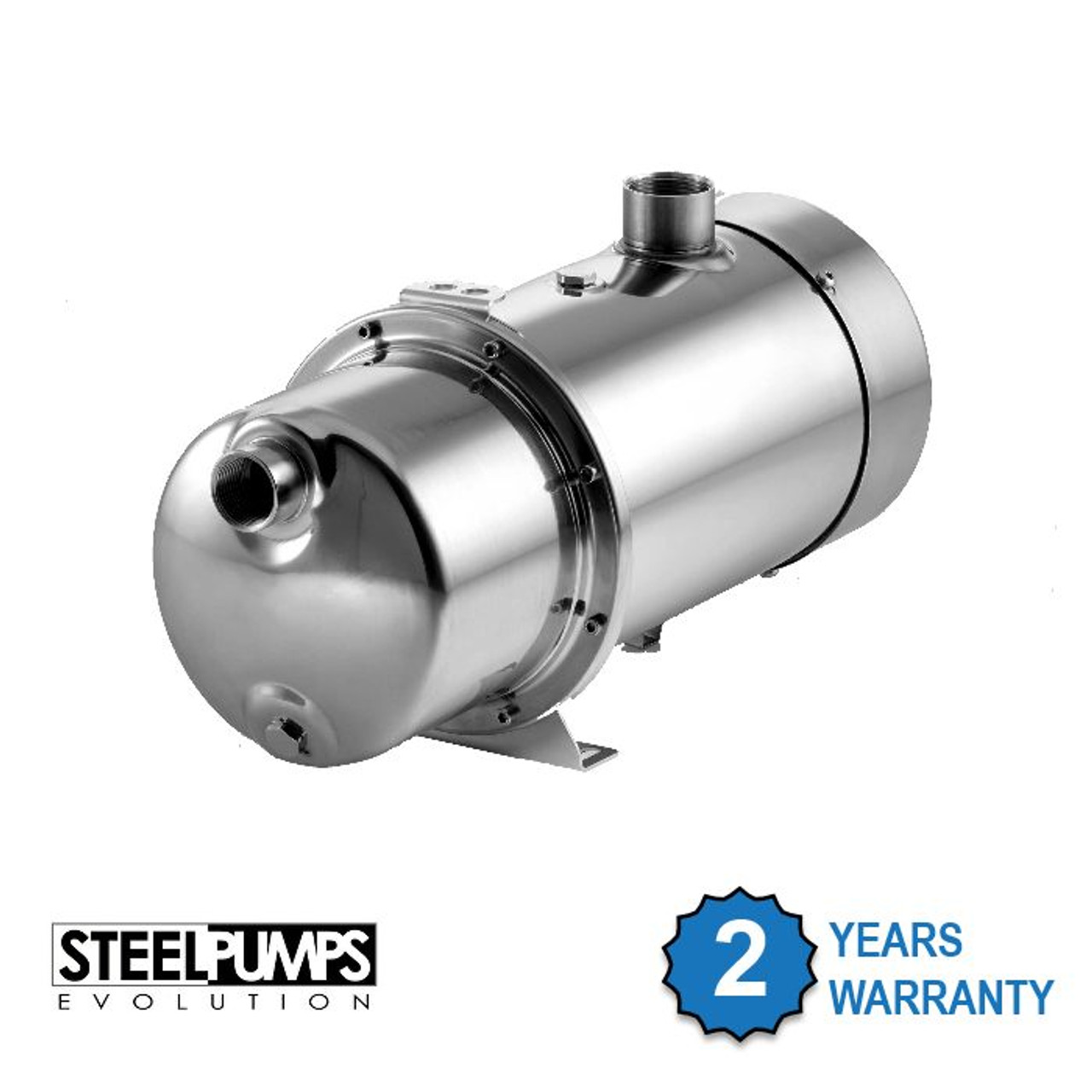

The SteelPumps range of Horizontal High Flow Pumps give up to 5.3 bar.
Fully waterproof, submersible and self-priming. This is a automatic professional pump ideal for domestic water boosting, surface irrigation, tank transfer, as wash down pumps for milking parlours, stock yards and agricultural machinery, and use within Fire Sprinkler Systems. This is a highly versatile and powerful pump range.
These clean water pumps can withstand total submersion in water (up to 5m suction depth) or can be externally connected to a tank or large above ground water butt. Fully waterproof therefore very safe to use (IP68), they provide a high volume source of constant pressurized water.
1.2hp motor.
Pumped liquid: Clean cold water without abrasives or solids.
These are automatic pumps and come, as standard, with anti-blocking system and dry run protection with automatic restart.
They are 230VAC Single Phase smart pumps which respond to pressure in the delivery pipe. They turn on when there is a demand for water, then switch off again automatically once the demand has been met. They also come with a Non-return Valve (NRV) that you screw into the threaded water inlet.
Very quiet in use. Their extremely low noise and vibration levels are due to the use of larger, smoother running motor components, a single piece rotor shaft, and a 360 degree water jacket surrounding the motor. Noise Absorption is maximised, making them far more pleasant to live with than a traditional air-cooled pump. This water cooled design and stainless steel stator housing remove heat from the motor faster than any other type of design. Unlike air and oil cooled pumps, which warm up quickly in hot rooms and sunny positions, increasing susceptibility to stress and fatigue, SteelPumps stay as cool as the water they are pumping.
They are clean water pumps, which means that collected rainwater needs to be filtered before it enters the pump. This can either be done when collecting the water using a quality downpipe diverter that also filters the water, like the 3P Filter Collector Universal, before it enters your rainwater storage vessel.
Pump Warranty
This is a high quality professional pump that comes with a 2 year warranty when properly installed. SteelPumps are designed to be serviceable long into the future with common service components located behind an easy to remove electrical cover. The capacitor, pressure switch, flow sensor and control unit are all easily accessed.
Pump Repairs and Servicing
Disassembly of the entire pump is straightforward using basic tools, and ALL parts, including nuts and bolts, are available to order individually from the manufacturers website: wwww.steelpumps.co.uk. There are no corrodible mechanical parts within the pump, no potted electronics, no crimped wiring (everything unplugs). Service diagrams and information provided on request.
While other brands are ‘production engineered’ to be assembled fast and never taken apart, Steelpumps can be maintained for as long as spares are made. They are designed to last.
Optional Extras
Pump to Water Tank Connectors
A range of Pump to Tank Connectors are available on this site. Each are quick and easy to install.
Order separately from the following pages:
- Pump to Tank Connectors for 1" pump inlets.
- Suction Hose Kits for 1" or 1.25" pump inlets.
Technical Information
- Pumped liquid: Clean cold water without abrasives or solids.
- Motor: 1.2hp
- Max bar: 5.3
- Inlet Size: 1.25"
- Outlet Size: 1.25"
- Dimensions: 200mm wide x 226 high x 477mm long
- Weight: 17Kg
- Waterproof protection rating: IP68
- Pump Type: Water cooled, multi stage, Single Phase, centrifugal.
- Motor Body: Stainless 304.
- Rotor Shaft: Stainless 420.
- Supporting Flanges: Brass.
- Impeller, Diffuser and Venturi: Noryl.
- Electrical cover: Stainless 304.
- Liquid temperature range: +2°C to +37°C.
- Air temperature: max +45°C.
- Maximum depth: 5m.
- Calibrating pressure rate switch: 1.5 bar.
- Cable Length: 10m with plug.
Documents
- X-AMO/MO PRO Brochure including flow curves (pdf).
- SteelPumps Additional Guide (pdf)
- SteelPumps Commissioning Checklist (pdf)
Included Components
- SteelPump
- Non Return Valve (NRV)
- 10m Cable with plug
- Full Installation Instructions
Other Versions
- Also available in a "B" Version Pump design.
- Ask us about Manual and Three-phase versions of this pump.
FAQs
What is the difference between the "P", "B" and "PRO" versions of SteelPumps?
The "P", "B" and "PRO" suffixes of the SteelPump range of intelligent pumps refers to the build properties of the pumps. Essentially;
- P = Designed primarily for portable and garden use.
- B = Designed for domestic and light commercial use.
- PRO = Extensive use of stainless steel and brass within the pump build and therefore designed for commerical and industrial use.
